Card cage shielding

12 September 2001 Circuit & System Protection

Laird Technologies offers three unique products designed to shield the front panels of card cages. These three products accommodate the IEEE standard 1101.10, commonly referred to as Dot-10.

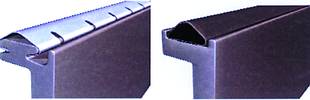

This front panel shielding has been designed to shield between the front panels on sub-racks and plug-in units. Part number 7707724095 is a beryllium copper solid-top symmetrical slotted finger stock strip pre-plated in sulfamate nickel. It is designed to mount on the T shape on a front panel extrusion. Specially designed for wiping applications, the configuration of these gaskets allows total symmetrical compression action with bidirectional engagement.

The fabric over foam versions are a nickel/copper-plated fabric over neoprene core (4630-AB-E1K) and a nickel/copper-plated fabric over a urethane core (4356-AA-51K). These are designed to be mounted using pressure-sensitive adhesive (PSA) tape on grooved aluminium extrusions common in the Dot-10 enclosure. The fabric over foam gaskets have low compression and are ideal in high-speed/high-access applications.
