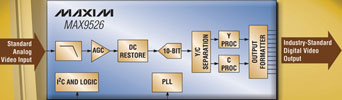

Broadening its portfolio of solutions for the digital video signal path, Maxim has introduced the MAX9526, a 10-bit, 4x oversampling video decoder. This device is built around a 54 MHz, 10-bit ADC that delivers outstanding image quality when converting analog video signals to a digital format. The selectable 8-/10-bit video output provides image quality at the same precision (8-bit) used to author Blu-ray Disc and other forms of high-definition content (ITU-R BT.656 4:2:2). The device is capable of operating from 1,8 V on all supplies; in addition, a 1,7 V to 3,45 V supply range on its digital I/O eliminates the need for external level shifters when interfacing with a video processor. The video decoder is well suited for low-power, space-constrained applications such as CCTV security and surveillance, automotive park-assist camera systems and consumer electronics applications.
