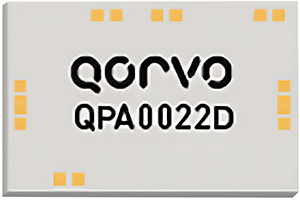

Qorvo’s QPA0022D is a high-performance driver amplifier fabricated on the company’s production 0,15 µm pHEMT process (QPHT15). Covering 6 to 18 GHz, the QPA0022D provides 24 dB small signal gain and 25 dBm P1dB, with saturated power of 26 dBm. In addition, the device has low IMD3 level of -50 dBc at Pout = 10 dBm/tone.
The amplifier, with dimensions of 2,95 x 1,47 x 0,1 mm, draws 175 mA from its 5 V supply input. The QPA0022D is matched to 50 Ω, with integrated DC blocking caps on both I/O ports for easy handling and simple system integration. It is an ideal choice for electronic warfare and communication systems.
