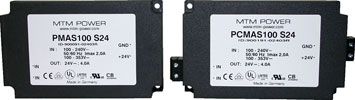

The primary switched power modules PMAS/PCMAS100 from MTM have been designed as universal compact power supplies with AC and DC wide input ranges for worldwide application and allow an efficient, cost-saving solution for different tasks where medium-ranged power is needed. The dimensions of the cases are 140,0 x 85,0 x 35,0 mm and 166,0 x 85,0 x 35,0 mm for the PMAS and PCMAS, respectively.
The power supplies are vacuum encapsulated, prepared for applications in Class 1 and/or 2 and comply with the low voltage directives as well as the up-to-date EN standards as regards CE conformity. Further features are rugged design, 100% burn-in test and automatic 100% final test. The series offers 100 W constant output wattage, is short circuit protected, needs no ground load and is designed for PCB mounting (PMAS) or chassis mounting (PCMAS).
