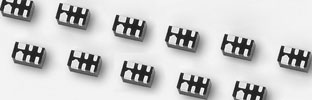

SP3014 series TVS diode arrays from Littelfuse integrate two channels of low-capacitance (0,5 pF) steering diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). They can safely absorb repetitive ESD strikes well above the maximum level specified in the IEC61000-4-2 international standard without performance degradation.

Low loading capacitance makes the parts ideal for protecting high-speed signal lines such as USB 2.0, USB3.0 and 1 Gbps Ethernet. Extremely low dynamic resistance protects the most sensitive, state-of-the-art chipsets against ESD by clamping the transient to a safe level just above the operating voltage, preventing catastrophic failure and limiting electrical overstress.

The small form factor (μDFN-6L package; 1,6 x 1,0 mm) of the arrays allows for straight-through routing with the PCB trace routed underneath the device without the need for stub traces that can cause signal degradation. AEC-Q101 automotive-grade quality ensures reliability in the harshest environments.

For more information contact Jeva Narian, Arrow Altech Distribution, +27 (0)11 923 9600, [email protected], www.arrow.altech.co.za
